Relay series,Time relay series

Power supply: DC24V; AC24V, AC220V, AC380V

Delay range: 0.99s, 9.9s, 99s, 9.9M, 99H 99.9s, 999s, 9.9M, 999H Repeat error: ≤1% Working mode: power delay Contact form: two sets of delayed contacts Contact capacity: 3A AC250V(resistance) Dimensions: 83×45×80mm Opening size: 56-2× diameter 4.5mm

Installation method: device type or 35mm guide rail type

Power supply: DC24V; AC24V,AC220V,AC380V

Delay range: 1s 5s 10s 30s 60s 120s 180s Repeat error: ≤5% Working mode: power off delay Contact form: HHS5F: a set of delayed contacts with reset HHS5F1: Two sets of delayed contacts HHS5F2: a set of delayed contacts A set of instantaneous contacts Contact capacity: 3A AC250V(resistance) Dimensions: 55×41×84mm Installation method: With different sockets and accessories can achieve device type,

Panel and 35mm guide mounting

Power supply: DC24V; AC24V, AC220V

Delay range: 0.1-100h time base Optional

Repeat error: ≤1%

Working mode: power delay

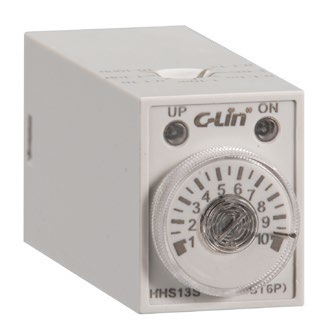

Contact form: HHS13S: two sets of delayed contacts

HHS13S-1: Four sets of delayed contacts

Contact capacity: HHS13S: 5A AC250V(resistance)

HHS13S-1:3A AC250V(resistive) dimensions: 22×28×70mm

Installation method: The base is mounted on a 35mm guide rail

Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.

The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
