| Brand Name : | Customized |
| Model Number : | JHL/UPS3S-300KVA |
| Certification : | CCC, ISO |
| Price : | Pending |
| Payment Terms : | T/T,D/A |
| Supply Ability : | 5000PCS/YEAR |
| Delivery Time : | 35 work days |

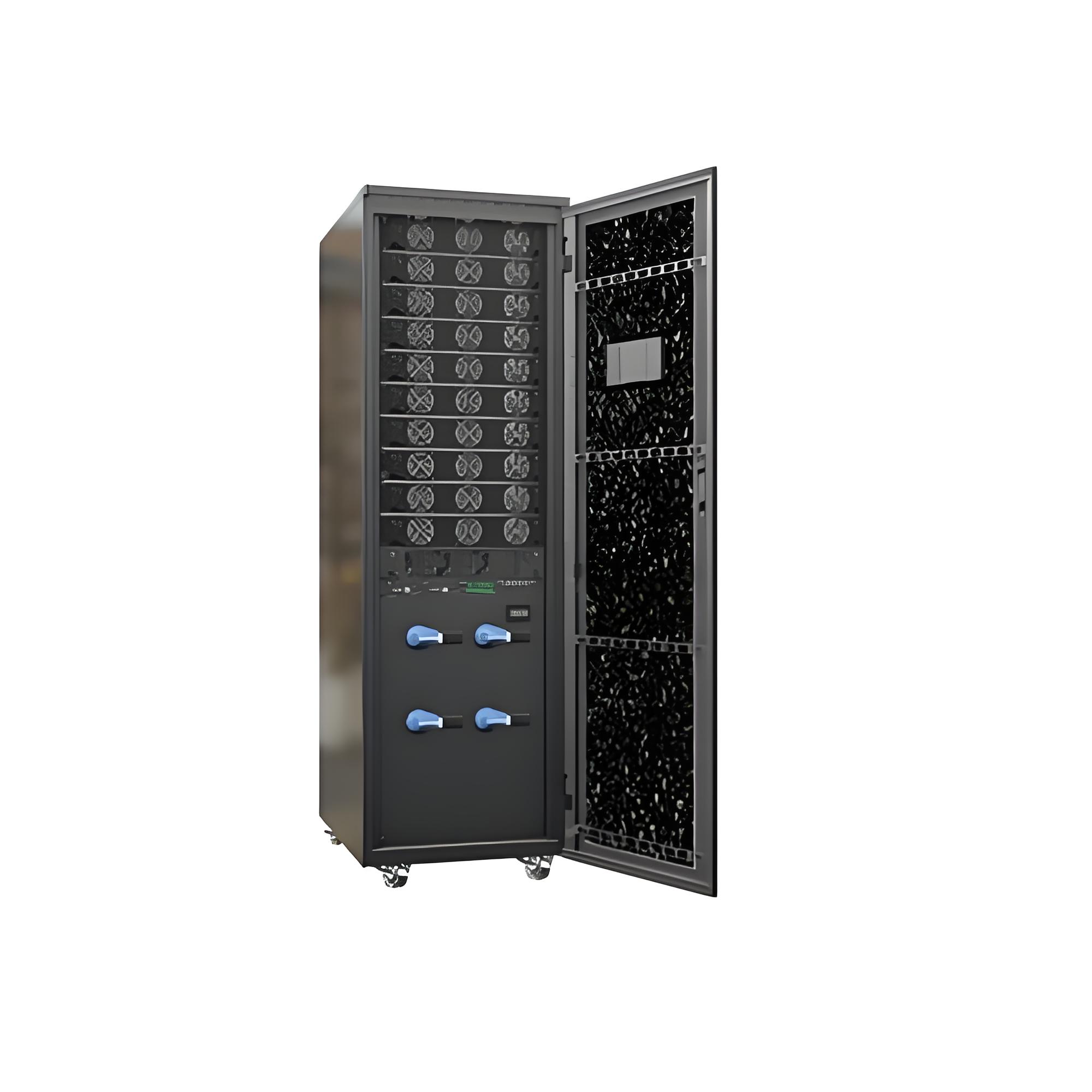

300KVA three-phase modular UPS
Performance characteristics:
* expansion and modular design, easy output
*power factor PF =1 KW (KVA)
* N + 1 rn 10 + R parallel redundant application design increased system flexibility, stability and safety
* modularization design application in the power supply module, the STS module and battery module is easy to maintenance, Can reduce after-sales maintenance cost
* charging current is adjustable, each module maximum charging current can be up to 8 a / 6 a
* 5.7 inch LCD graphical design, show more intuitive clear
* optional 10-inch touch LCD screen

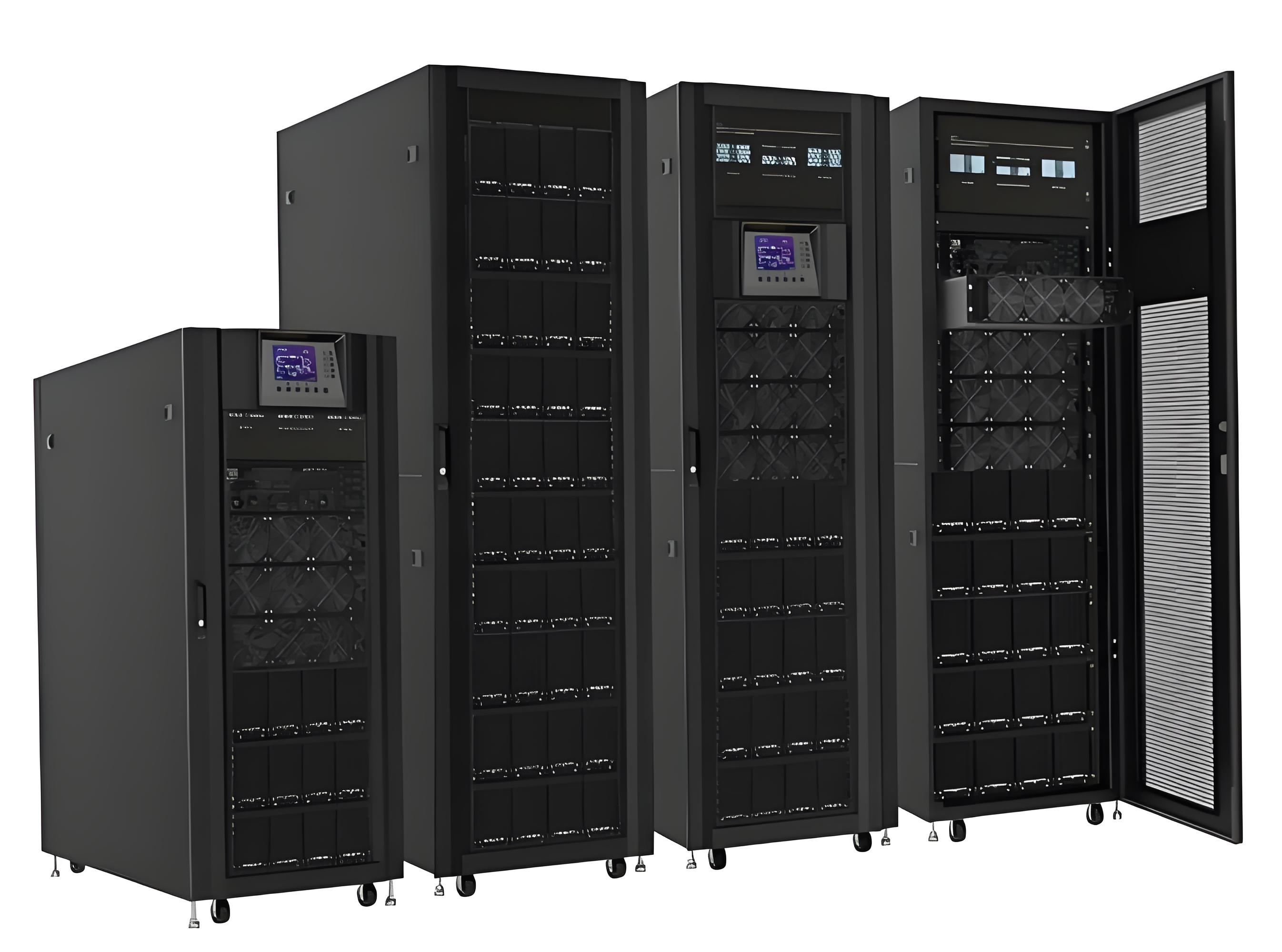

| Parameter description of the 300KVA modular UPS | |||||
| Camera | JHL/UPS3S-90KVA | JHL/UPS3S-120KVA | JHL/UPS3S-180KVA | JHL/UPS3S-300KVA | |
| Maximum module number | 3 | 4 | 6 | 10 | |
| Power module capacity | PM-30HV(30KVA/30KW) | ||||
| Power module size(W*D*H) | 440*650*132(3U) | ||||
| Power module weight | 35KG/PCS | ||||
| import | nominal voltage | 3*380/400/415VAC(3Ph+N) | |||
| voltage range | 305~478VAC@100%load;208~304VAC@50%load | ||||
| frequency domain | 40Hz~70Hz | ||||
| power factor | —100%load > 0.99, 50% load > 0.98 | ||||
| harmonic distortion(THDI) | <3% @100%load | ||||
| Battery | connection type | Positive and negative battery power supply | |||
| nominal voltage | 士192VDC~士240VDC(可调) | ||||
| Number of batteries/groups | 32/FLEXIBLE COUPLING UNIT(Can be set to 32-36-40 knots/group ) | ||||
| temperature compensation | support | ||||
| Maximum charging current (single module) | 8A | ||||
| output | nominal voltage | 3*380/400/415VAC(3Ph+N) | |||
| stabilized voltage precision | ≤士1%(balanced load),≤士2%(Unbalanced load)50Hz/60Hz | ||||
| nominal frequency | 50Hz/60Hz | ||||
| Frequency range (synchronization range) | 46Hz~54Hz or 56Hz~64HZ | ||||
| power factor | 1 | ||||
| peak factor | 3:1 | ||||
| overload capacity | <110%1h,111~125%10min,126%~150%1min,>150%200ms | ||||
| harmonic distortion(THDi) | <1.5%(linear load),<4%(nonlinear load) | ||||
| efficiency | ≧94.5% | ||||
| environmental index | noise | <65dB(100%load),Intelligent speed regulating fan | |||
| show | Large 5.7 inch screen | ||||
| communication | standard configurationRS232/USB,RS485,dry contact ;(SNMP Nic selection) | ||||
| service environment | 环境温度:0°C~40”C,环境湿度:0%~95% | ||||
| storage temperature:-25°C~75°C | |||||
| elevation(m):≤1000, 1% derating every 100 meters over 1000m | |||||
| entrench | IP20 | ||||
| physical parameter | Cabinet size(xdeepxhigh)mm | 514*1100*763 | 600*1100*1475 | 600*1100*1475 | 600*1100*2010 |
| Cabinet weight(Kg) | 190 | 345 | 478 | 645 | |
