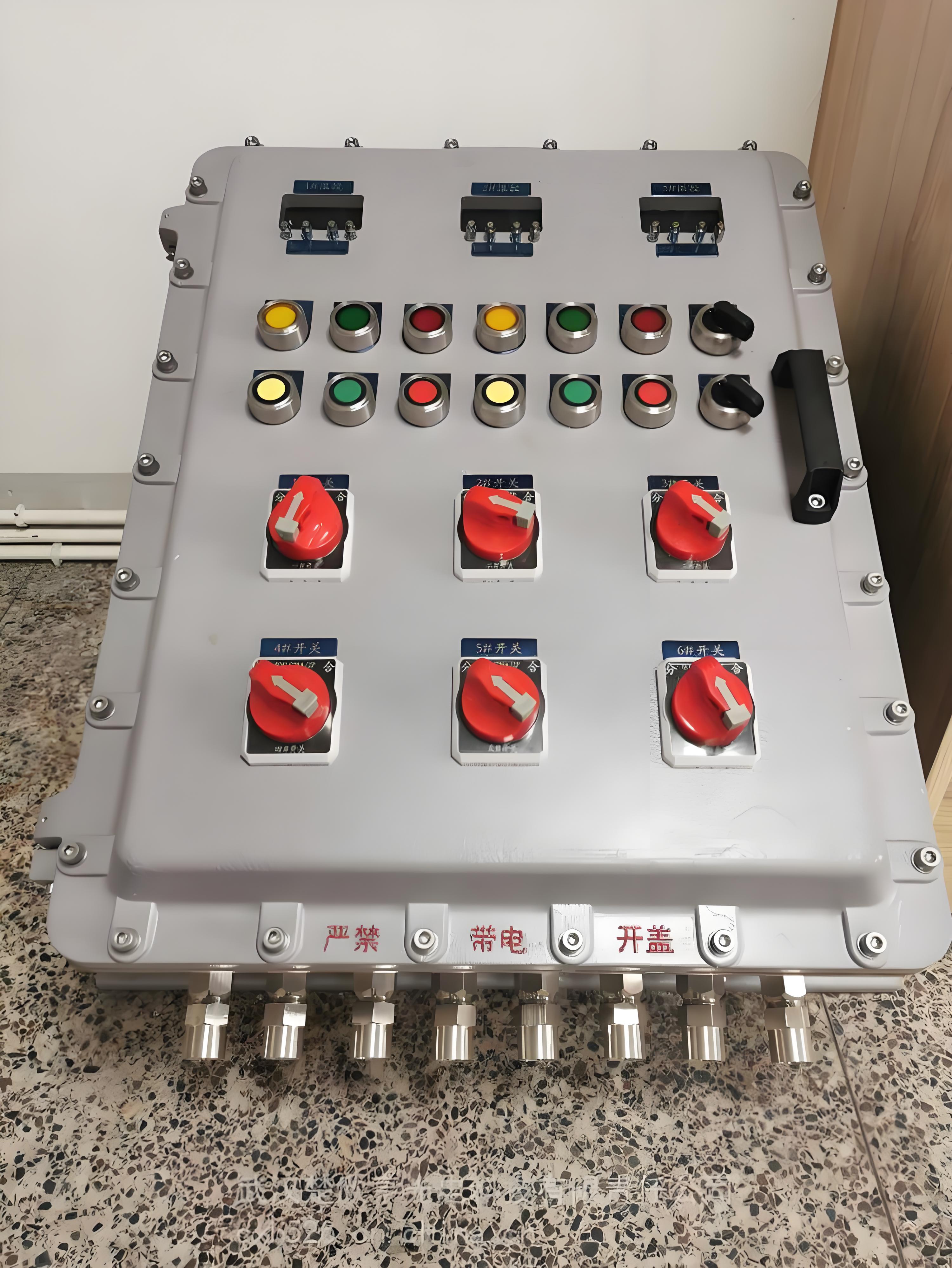

IP65 Exd Station Control Panel Box Closed Hazardous Distribution Box Station Panel ATEX

Key attributes

Explosion - proof Design and Certification

• ATEX Compliance: The panel holds ATEX certification, which is essential for use in potentially explosive atmospheres within the European Union. This certification indicates that the product has passed strict testing and adheres to the safety standards required to prevent ignition of explosive gas or dust mixtures. It assures users that the panel can be safely deployed in hazardous industrial environments.
• Exd Protection Principle: The “Exd” designation stands for flameproof enclosure. In the event of an internal explosion of an explosive gas mixture, the enclosure is designed to contain the explosion and prevent it from spreading to the surrounding environment. The enclosure is constructed with precise flame paths that cool and quench the hot gases produced during the explosion, ensuring that the gases exiting the enclosure are below the ignition temperature of the external explosive atmosphere.

High - level Ingress Protection (IP65)

• Dust - tightness: The IP65 rating indicates that the station panel is completely protected against dust ingress. No dust particles can enter the enclosure, which is crucial for maintaining the integrity and functionality of the internal electrical components. This protection prevents dust - related issues such as short - circuits and overheating, ensuring long - term reliability.
• Water - resistance: The panel can withstand low - pressure water jets from any direction without suffering harmful effects. This makes it suitable for use in outdoor or wet industrial environments, protecting the internal components from water damage caused by rain, splashes, or cleaning operations.

1. Explosion-proof design: * to prevent in the dangerous environment explosion caused by spark and arc.

2. Applicable range: * applies to oil, chemical, pharmaceutical, military industry and special areas, such as fuel bank, gas stations, aviation and space flight.

3. Durable structure: * by the solid steel through local welding technology have been assembled.

4. Customizable appearance: * panel design has corrosion resistance and can be customized color.

5. Effective thermal management: * at the ends of the vent helps manage the heat accumulation in the process of operation.

6. Comprehensive protection: * equipped with high breaking miniature circuit breaker, molded case circuit breaker, ac vacuum contactor, motor protector and voltmeter. * provide overload, short circuit, undervoltage, lack of phase and leakage protection.

7. Customizable components: * can be installed according to the customer request other components.

8. Abide by international standards: * keep GB3836-2000, IEC60079 GB12476.1-2000 and iec61241 standard.

9. High protection grade: * reach IP54 or IP55 or ip65 protection class.

10. Certification: * through relevant use explosion-proof certification in dangerous places.
