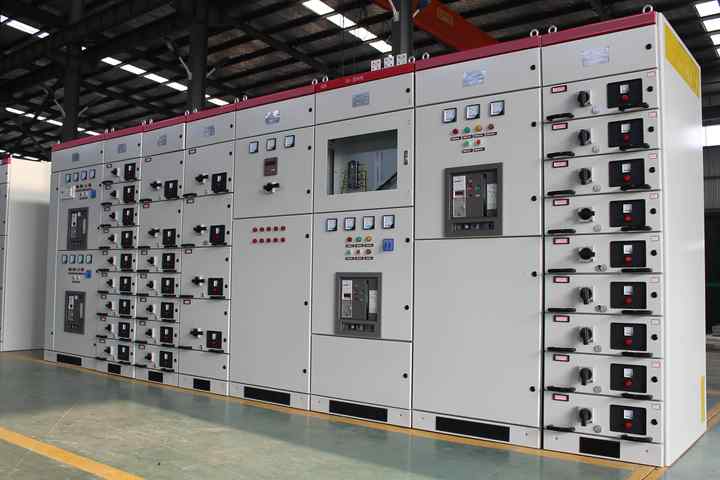

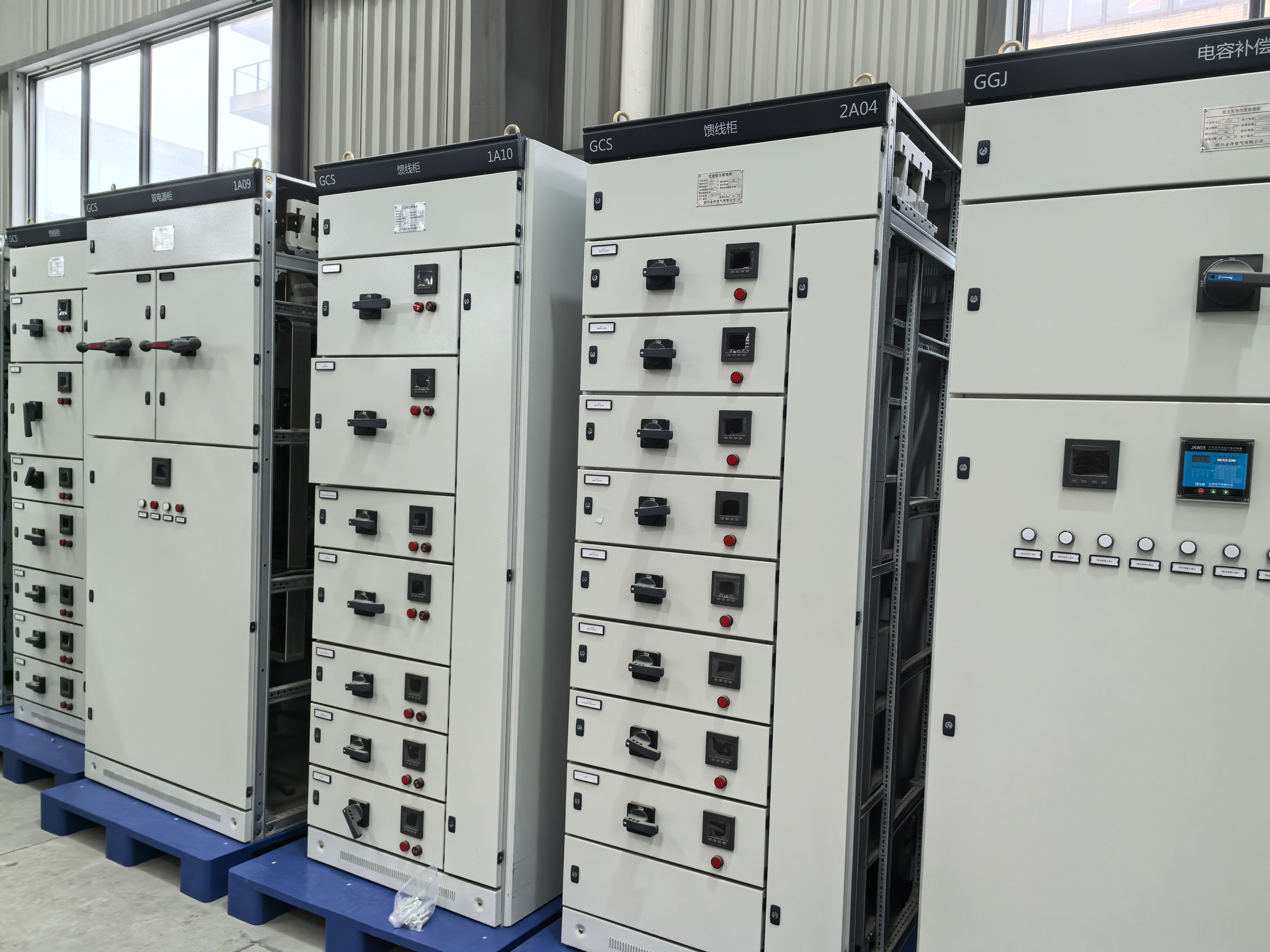

Electrical Drawout Type High Voltage Distribution Cabinet 12KV 24KV Low Voltage Switchgear

Key attributes

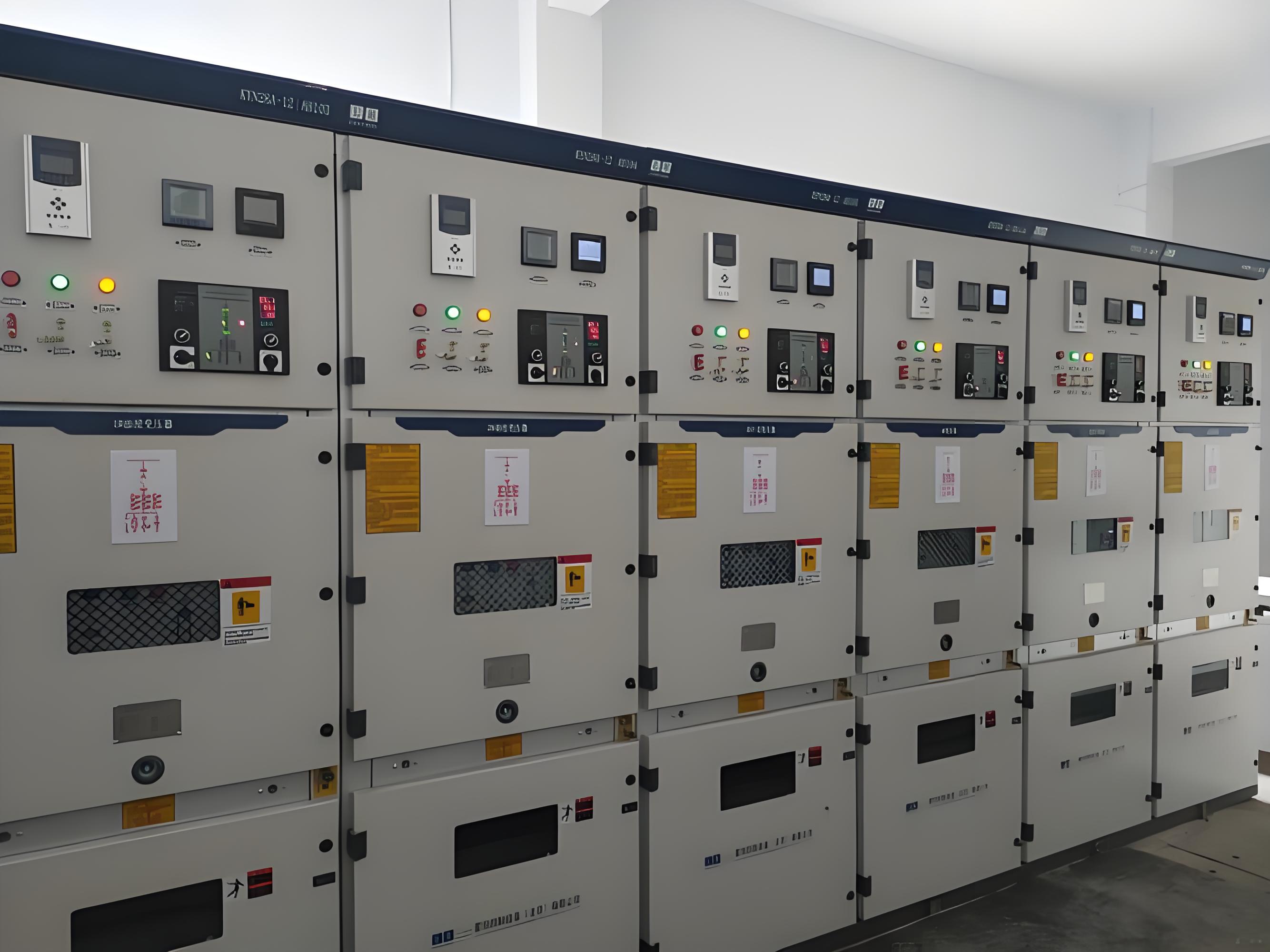

1.1box-type fixed metal-enclosed switchgear (referred to as "switchgear") is suitable for three-phase AC single bus, double bus, and single bus with bypass systems with rated voltage of 3.6~12KV, 50Hz, and rated current of 630A-3150A, for receiving and distributing electric energy.

2.It can meet the use requirements of various types of power plants, substations (stations) and industrial and mining enterprises.

3.This product complies with the national standards GB3906 "3-35kV AC metal-enclosed switchgear", IEC60298 "AC metal-enclosed switchgear and control equipment", and DL/T402, DL/T404 standards, and meets the "five-protection" locking requirements.

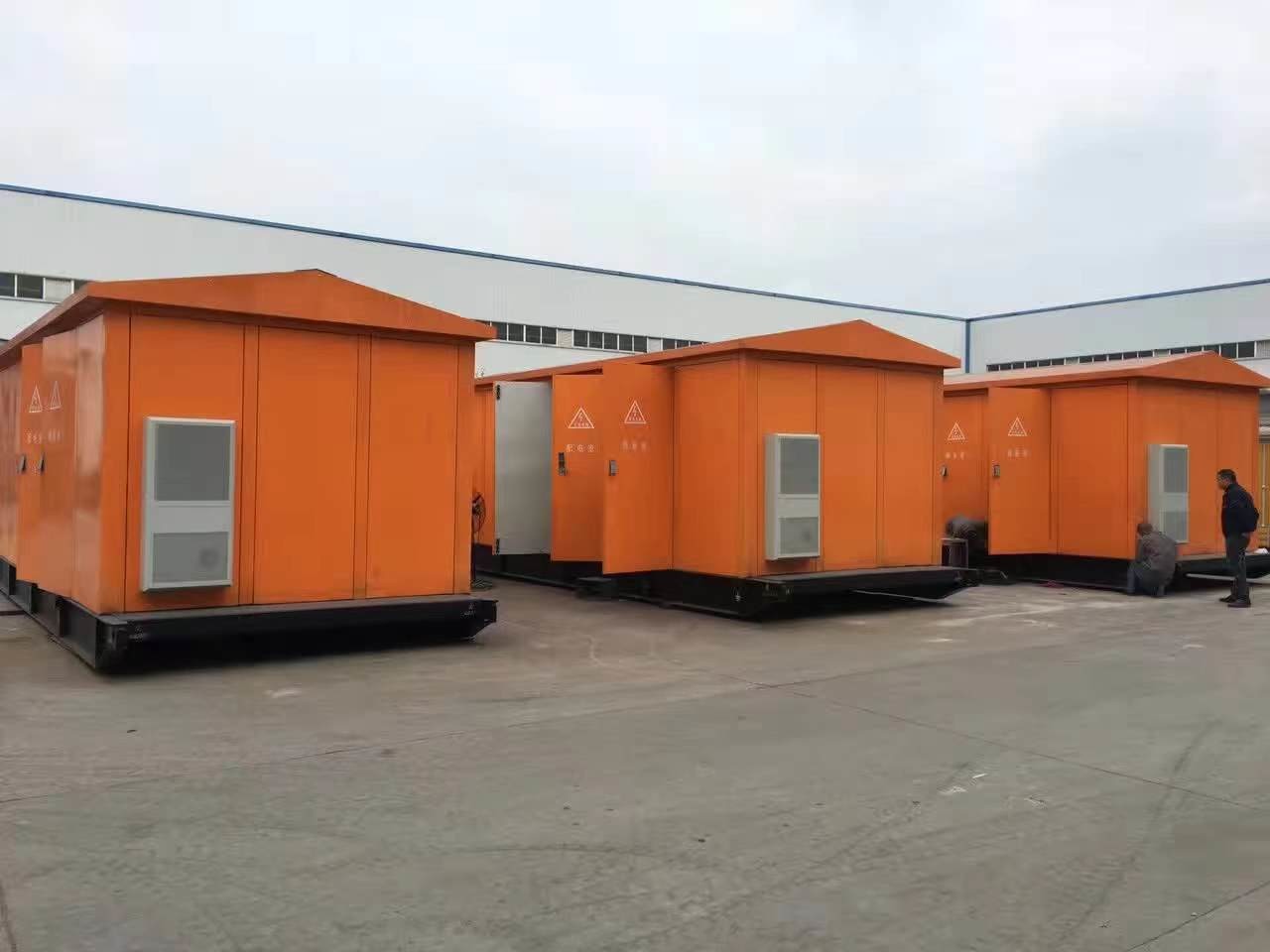

Advanced technology, safe and reliable Sturdy and anticorrosive shell The box shell is generally made of aluminized zinc steel plate. The frame adopts the standard container material and manufacturing process, with good anticorrosive performance and no rust for 20 years. The inner sealing plate is made of aluminum alloy buckle plate. The interlayer is made of fireproof and thermal insulation materials, which can effectively resist the erosion of the external environment.

Good insulation of equipment The primary equipment in the box adopts fully enclosed high-voltage switchgear, dry-type transformer, dry-type transformer, vacuum switch and other equipment. The product has no exposed live parts and is a fully enclosed and fully insulated structure, which can effectively avoid electric shock accidents.

Strong environmental adaptability The box is equipped with air conditioning and dehumidification devices, which can ensure the normal operation of the equipment in the harsh environment of -40℃ to +40℃ and is not affected by the natural climate environment and external pollution.

High degree of automation Realize "four remotes" function: The whole station is intelligently designed. The protection system adopts the microcomputer integrated automation device of the substation and is installed in a decentralized manner. It can realize remote measurement, remote signaling, remote control, and remote adjustment. It can monitor and control the operating parameters of the substation in real time and control and remotely alarm the humidity and temperature in the box.
