Sichuan Jinhuili Electric Co., LTD
1 Years
| Ask Lasest Price | |
| Brand Name : | Customized |
| Model Number : | 0.55-75KW |
| Certification : | CCCF, ISO |
| Price : | Pending |
| Payment Terms : | T/T,D/A |
| Supply Ability : | 1000PCS/YEAR |
| Delivery Time : | 35 work days |

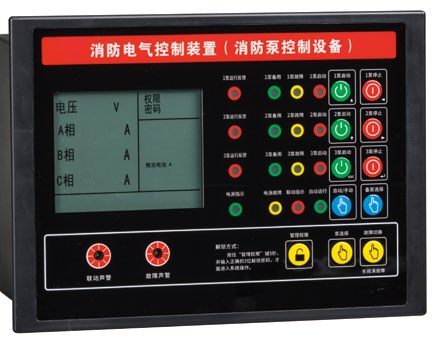

Fire pump control Motor controller Intelligent pump controller
Power supply: AC220V 50/60Hz
Rated power: 0.75 ~ 500kWRated current: 0.1 ~ 999AControl mode: direct starting, star triangle starting, soft starting, autobuck startingDisplay mode: LED digital tube, indicator light, Chinese charactersDisplay accuracy: 0.1/1AWorking mode: one use one standbyProtection function: power supply overvoltage, undervoltage, phase break, wrong phase, motor phase break, blocked rotation, overload, underload three-phase imbalance,Circuit breaker failure, contactor failure, fire pool water shortageFault indication: Chinese display, sound and light alarmLoad type: water pumpContact capacity: 250VAC 5A/10A (resistance)Size: 290×210×56mmOpening size: 272×192mmInstallation mode: panel typeOperating temperature: -10℃ ~ 45℃Ambient humidity: 10 ~ 90%RH (non-condensing)
product feature
◇ Built-in switching power supply
◇ Built-in circuit breaker closing detection ◇ Built-in phase sequence protector ◇ Phase sequence detection positive sequence, reverse sequence, off optional ◇ Current sampling 0.1A~999A ◇ Increase frequency, three-phase voltage, current cycle display ◇ Programmable input and output terminals ◇ Increase overload alarm without stopping function ◇ 485 Communication function ◇ Standby pump failure stop ◇ Strong start linkage alarm can be set ◇ Water shortage protection stop ◇ Lower pressure audible alarm can be set
Sichuan Jinhuili Electric Co., Ltd. is specialized in distribution automation, power quality, energy efficiency management of the main products and services; The products include high and low voltage power distribution equipment, uninterruptible UPS power supply, emergency power supply, DC power supply, complete sets of intelligent control equipment, solar photovoltaic power generation, energy storage management, operation and maintenance and other comprehensive automation.
The company is located in Chengdu, Sichuan Province, China, covers an area of more than 10,000 square meters, has a large number of outstanding management personnel, senior engineers and power professional and technical personnel, has been awarded by the government and departments "civilized private enterprise", advanced private enterprise, scientific and technological innovation enterprise, contract-respecting, trustworthy units and other honorary titles.
|
|
