Plastic-case circuit breaker system,Plastic-case leakage circuit breaker

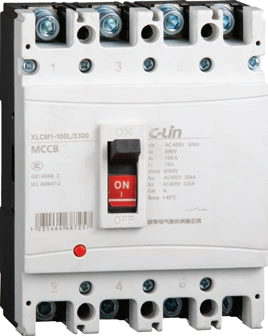

Plastic-case circuit breaker system
CM1(CM1) series plastic-case circuit breaker is suitable for AC 50Hz, rated insulation voltage 690V(type 63 is 500V), rated working voltage 400V, W
In a distribution network circuit with a fixed working current of 16A to 800A, it is used to distribute electrical energy and protect lines and power supplies from overload, short circuit, undervoltage and other faults The damage. At the same time, it can also be used as the motor's infrequent start and overload, short circuit, undervoltage protection. Products comply with: GB/T14048.2 standard.Rated operating voltage AC400V
Rated insulation voltage 690V (500V for type 63) Chassis grades 63A, 125A, 250A, 400A, 630A, 800A Rated current 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A Overload protection (delay) distribution protection, motor protection Rated limit short-circuit breaking capacity level L(standard type); M(higher fracture type) Installation mode Vertical or horizontal Wiring mode Front wiring, back wiring, insert type Pole number 3P, 4P Pollution level 3 Installation Category III Protection class IP20 Ambient temperature Upper limit temperature: +40℃; Lower limit temperature: -5℃The altitude does not exceed 2000 meters
Plastic-case leakage circuit breaker
CM1L series leakage circuit breaker is suitable for AC 50Hz, rated working voltage to 400V, rated working current 16A to 800A
It is used for leakage protection in the power supply system with direct grounding of the source neutral point, and can also be used to prevent the grounding fault current caused by equipment insulation damage Caused by fire hazard. And can be used to distribute power and protect lines and power equipment from overload, short circuit and other faults damage, can also be used as a motor Infrequent start and overload, short circuit protection. Products comply with: GB/T14048.2 standard.Rated operating voltage AC400V
Frame grade 125A, 250A, 400A, 630A, 800A Rated current 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A Leakage current 30mA, 50mA, 100mA, 200mA, 300mA, 500mA, 1000mA Overload protection (delay) distribution protection, motor protection Rated limit short-circuit breaking capacity level L(standard type); M(higher fracture type) Installation mode Vertical or horizontal Wiring mode Front wiring, back wiring, insert type The polar numbers 3P, 4P, 3P+N Pollution Level 3 Installation Category III Protection class IP20 Ambient temperature Upper limit temperature: +40℃; Lower limit temperature: -5℃The altitude does not exceed 2000 meters
|
|
