Sichuan Jinhuili Electric Co., LTD
1 Years
| Ask Lasest Price | |
| Brand Name : | JHL |
| Model Number : | CKSG |
| Certification : | CCC |
| Supply Ability : | 100PCS/YEAR |
| Delivery Time : | 30work days |

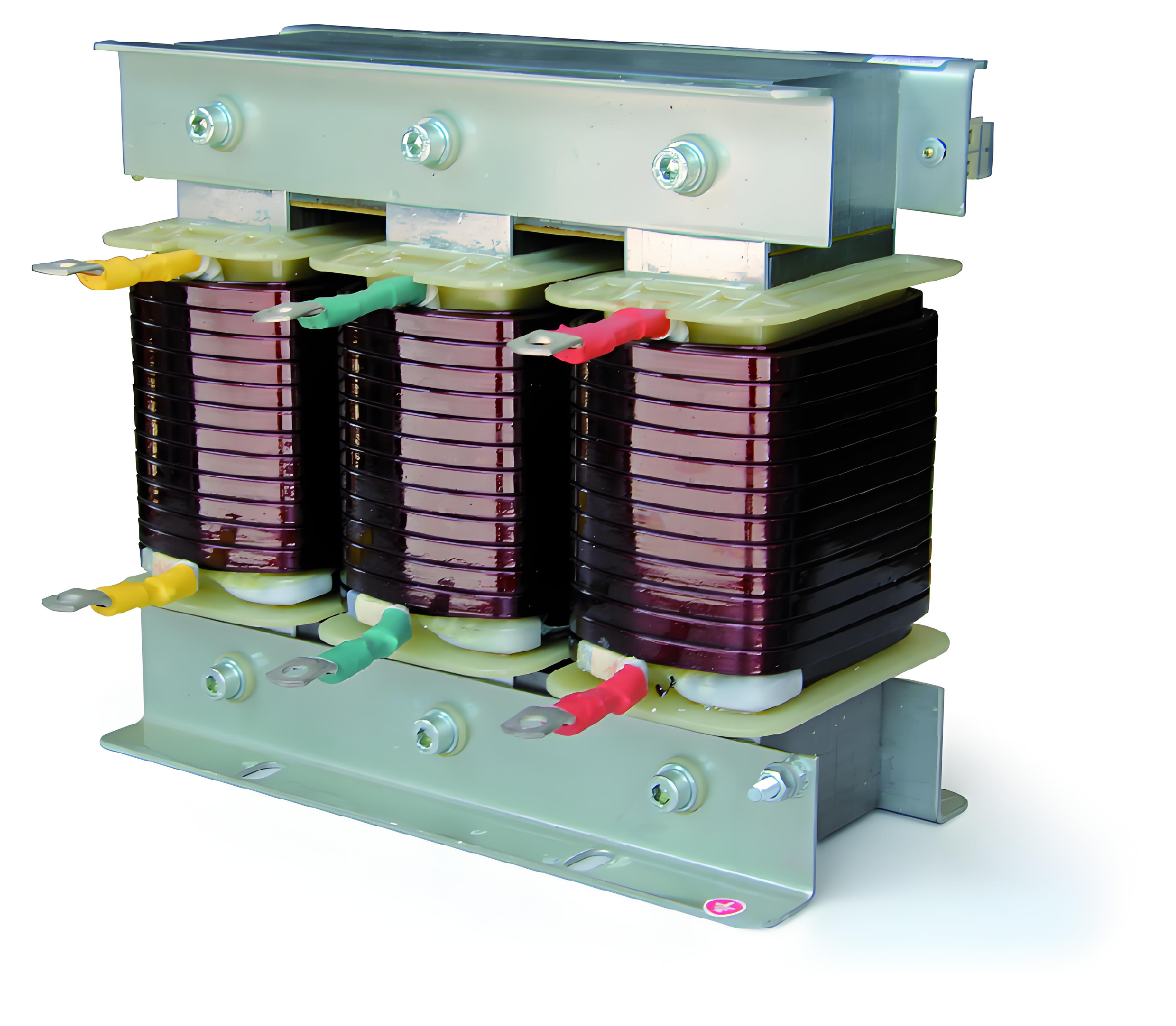

Three-phase series capacitor shunt reactor CKSG series reactor made in China
Apply
In reactive power compensation systems, capacitors can be affected by factors such as harmonics, on-surge current and operating overvoltage, which can damage the capacitor or reduce the power factor. When the reactor is shunt in front of the capacitor, it can limit harmonics, protect the capacitor, improve the power factor and extend the service life of the capacitor. Technical parameter 1. Operating capacitor voltage: 0.4kv, 0.45kv, 0.48kv, 0.525kv 0.66KV, 0.69KV; 2. Reactance rate: 1%, 4.5%, 5%, 5.67%, 6%, 7%, 12%, 13%, 14%; 3. Voltage rating: 5KV/min, insulation rating: B, F, H, Noise level ≤ 30dB; Overload capacity ≤ 1.35 consecutive times.
|
|
